Why DC Coupling Matters: Efficiency, Cost, and Energy Management
DC coupling can be confusing to homeowners who are considering efficiency, cost, installation requirements, and battery performance. DC coupling is a useful concept to understand in the context of solar and storage. In this article, you will learn what DC coupling is, energy flows, conversion stages, and some important differences between DC and AC coupling. Readers will find out how both approaches compare in terms of efficiency, costs, flexibility, resiliency, scalability, and solar clipping.

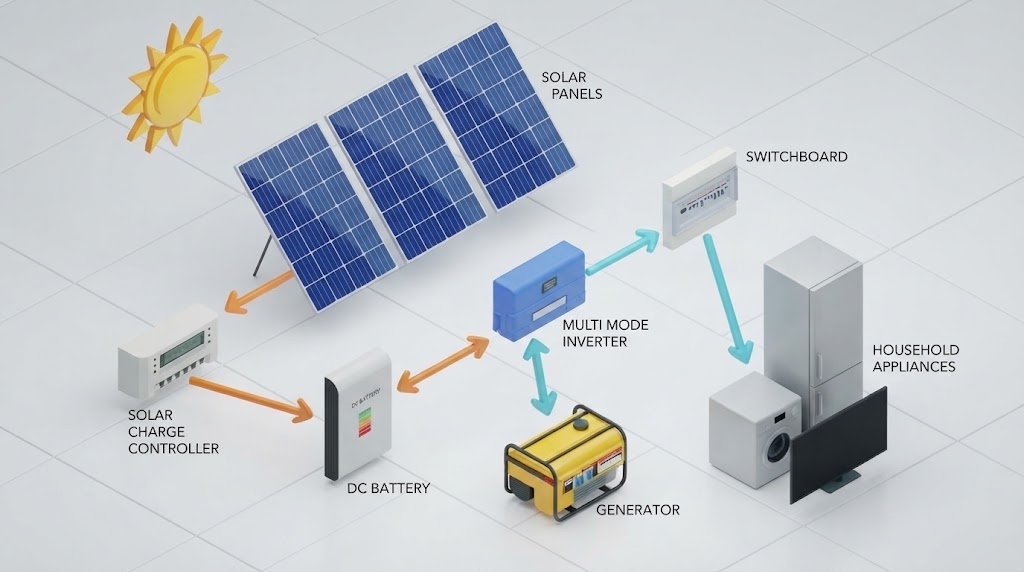

What is DC coupling?
DC coupling is a way of connecting your solar panels and battery storage on the DC side, usually via a single hybrid inverter. The battery is able to charge directly from solar panels without requiring electricity to be converted from DC to AC. If your home requires electricity, the hybrid inverter converts the stored or generated DC electricity into usable AC electricity. A reduced number of conversion stages can minimize conversion losses, which means more energy generated is available for household use.
DC vs AC coupling – Key differences unveiled
An AC-coupling system connects solar PV, energy storage, loads, and the grid through AC power connections. You first convert PV-generated DC electricity into AC electricity using an inverter. This power can supply loads directly or flow into the grid. A bidirectional inverter can also charge batteries from grid electricity when needed. Because these components operate in parallel, you can add storage without redesigning an existing PV system. This configuration offers flexibility, stable grid integration, and broader applications for solar-plus-storage systems. Let's uncover the key differences below!
Factor | DC Coupled | AC Coupled |
Energy conversion & efficiency | 1 conversion; ~89–96% round-trip efficiency | 3 conversions; ~86–92% round-trip efficiency |
System cost | ~$900–$1,300/kWh installed — fewer components | ~$1,000–$1,500/kWh installed — separate inverters needed |
Installation & retrofitting | Best for new builds | Easier retrofit onto existing solar systems |
Flexibility & placement | Low — components must be co-located | High — inverters/batteries placed independently; battery can also charge from grid |
System resiliency | Single inverter = single point of failure | Multiple inverters = built-in redundancy |
Scalability | Streamlined expansion, minimal overhaul | Scalable, but each addition needs its own inverter |
Clipping losses | Captures excess solar via oversizing | Excess beyond inverter capacity is typically lost |
Solar clipping and energy use
DC coupling: DC coupling can harness oversized solar with inverter oversizing, which lets more solar energy get to storage. This can minimise clipping losses if the solar power is greater than the inverter capacity.
AC coupling: Production over the solar inverter's capacity before reaching the battery could result in the loss of excess solar with AC coupling. Clipped energy is usually not recoverable via battery storage, as the conversion takes place separately.

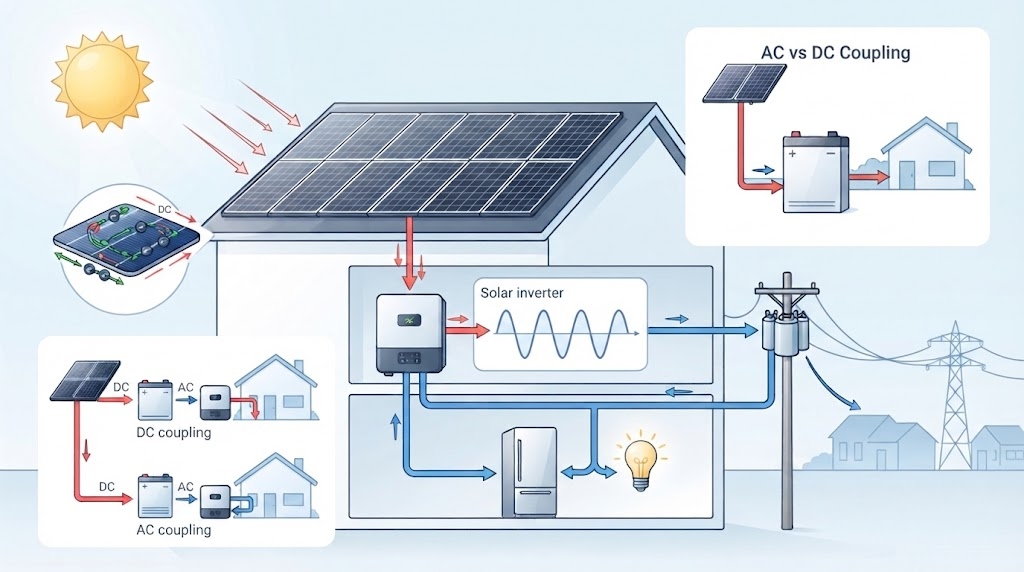

Are solar panels AC or DC?
Solar panels produce direct current electricity because when the sun's energy hits the electrons, they move in a steady direction. If you're using solar power at home, an inverter is used to switch the DC electricity to AC power. This conversion allows for solar power to be compatible with household appliances and the electrical grid, which operate on AC electricity. The main difference between DC and AC coupling is where this conversion takes place in your solar and battery system. That knowledge enables you to appreciate the impact of system design on energy flow and efficiency.
What makes a good DC-coupled solar battery system?
A well-designed DC-coupled solar battery system maximizes energy efficiency, storage capacity, and long-term flexibility for your home. The following key factors determine whether a system can meet your energy needs today and adapt to future demands.
Solar input capacity
Select a solar inverter that has sufficient PV input capacity to accommodate the expected production from the PV array in an efficient manner. With correct sizing, an inverter can make the most of the available solar energy without unnecessary power or control restrictions. A proper system should also consider the future expansion of solar energy and local conditions, as well as the household demand in the four seasons and different conditions.
Battery capacity and scalability
The size of the battery dictates the amount of extra solar energy that can be stored for later use in the home. Increased storage will lessen the need for grid electricity during times of peak demand when solar production is lower. Scalability is also important as the energy requirements of electric vehicles or other appliances may increase over time.
Energy management
Good energy management intelligently balances solar energy generation with battery storage, grid electricity, and home loads throughout the day. TOU optimization can also help to move energy from storage to high-cost times, and self-consumption can boost the direct use of solar energy. Backup operation and VPP compatibility can add flexibility, resilience, and energy control in some cases.
How EcoFlow OCEAN Pro supports DC-coupled energy storage
When undertaking a home energy upgrade, understanding DC coupling will help you make the most of solar energy. In a DC-coupled system, the solar panels and the battery share the same DC bus, so the power generated by the PV array can flow directly into the battery with minimal conversion loss. These advantages, however, can only be fully realized on a truly high-spec, high-performance hardware platform.

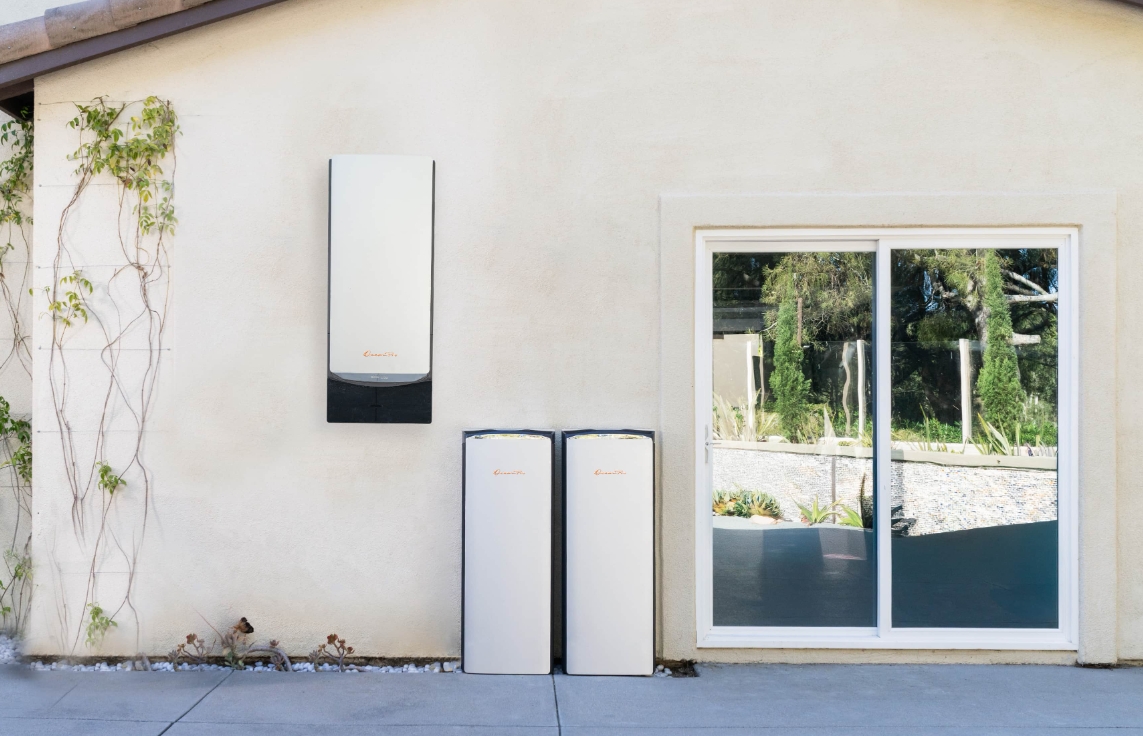

The EcoFlow OCEAN Pro Solar Battery System is a hybrid system that combines solar energy, battery storage, the grid, and backup power sources. Its 40kW solar input allows you to capture more rooftop generation and store excess energy. It's also possible to add up to 80kWh of storage capability when your backup needs increase. The system has a maximum output of 24kW (continuous 24kW whole home backup power). By using smart energy management, energy usage can be shifted around solar availability, energy tariffs, and household energy consumption patterns.
Get Your Free Home Energy Consultation！
Which energy solution are you interested in?
Conclusion
DC coupling can offer an efficient route to integrate solar generation and battery storage and minimize conversion steps. It offers the possibility of direct battery charging, flexible energy management, and reduced clipping losses in appropriate system designs, compared to AC coupling. But the selection of the system relies on the installation requirements, equipment configuration, storage needs, and the energy patterns within households. The EcoFlow OCEAN Pro Solar Battery System adds to these factors a significant amount of solar input, expandable storage, whole-home backup, and intelligent energy management that enables real-world solar-plus-storage solutions.
FAQs
When to use AC vs DC coupling?
Where efficiency and integrated battery operation are important, use DC coupling for new solar-plus-storage installations. It is ideal for off-grid applications that need to move energy efficiently and have a backup option. AC coupling is also suitable for already installed solar systems and facilitates the retrofitting of batteries without having to replace solar inverters.
How DC coupled battery storage assist in power outage?
During an outage, DC-coupled storage can continue receiving solar power and charging batteries. A backup inverter converts stored DC electricity into household AC power when needed. A practical example of this scenario is the EcoFlow OCEAN Pro solar power battery system that can support automatic backup for household loads.
What is DC-coupled battery storage?
DC-coupled battery storage connects solar panels and batteries on the same DC side before one hybrid inverter. Solar electricity can charge batteries directly, reducing conversion steps and losses. This configuration can lower equipment costs while supporting solar arrays and storage.
