What Is Power Factor and Why Does It Matter in UK Installations?
Power factor is a quantity between 0 and 1 that indicates the efficiency of a circuit in converting electrical power into useful work. So, a Power Factor of 0.8 implies that only 80% of the Current drawn is useful. The remaining 20% is used as “reactive current” in cables, switchgear and inverters, but does not produce any useful energy.
The three implications for UK solar installers are: Inverters must provide a rating for apparent power (kVA), not real power (kW); cable sizing is dependent on the actual current draw; and the influence of low power factor on standing charges for larger sites and the impact on connection agreements with the DNO.
How It Differs from a Standard Kilowatt Consumption Reading
Real power is the active power and is the only form of power measured on most energy bills and smart meter displays. The power factor calculation formula demonstrates the relationship between real and apparent power, something a British Gas in-home display does not display. On-site power factor measurement must be made with professional monitoring equipment.
What Power Factor Is Not
A smart plug measures the wattage of a single appliance and includes energy monitoring features. Does not measure reactive current, apparent power or system-level power factor. Whole-home smart energy monitoring is the right tool for power factor analysis, and throughout this guide, system-level calculations are emphasized.
The Power Factor Formula and How to Apply It
The Core Calculation and What Each Variable Represents
The formula for power factor is:
PF = P / S
PF = power factor (between 0 and 1) P = real power (in kW) S = apparent power (in kVA). The power formula with power factor can be rearranged into:
P (kW) = S (kVA) x PF
S (kVA) = P (kW) / PF
Reactive power also plays its part in the relationship: Q (kVAR) = S (kVA) x sin(theta). These three quantities make the power triangle: apparent power is the hypotenuse, real power is the horizontal, reactive power is the vertical, and the cosine of the angle between reactive power and real power is the power factor.
Worked Examples for UK Single-Phase Residential Installations
Example 1: A single phase property consumes 5.5 kVA. The real power read by the inverter is 4.4kW. Using the power factor calculation formula: PF = 4.4/5.5 = 0.80 – This is an acceptable value, but relevant to the selection of an inverter.
Example 2: If the real power consumed by a client is 3.6 kW and the measured power factor is 0.9, then the apparent power consumed is: Apparent power the inverter must handle: S = 3.6 / 0.9 = 4.0 kVA. Using 3.6kW would be an overrated system. The inverter should have a minimum capacity of 4.0kVA.
Related Energy Formulas Every Installer Should Know
Calculating Apparent Power and kVA Demand from Site Measurements
On single-phase installations: S (VA) = V x I. On a UK 230 V supply drawing 20 A: S = 230 x 20 = 4,600 VA or 4.6 kVA.
Three-Phase Power Factor Calculations for Larger Properties
For three-phase work, the 3 phase power factor correction formula for apparent power is:
S (kVA) = V (line-to-line) x I x 1.732 / 1,000
For real power: P (kW) = V x I x 1.732 x PF / 1,000
Where 1.732 is the square root of 3. Always check whether the source is balanced before using this formula. If the load is unbalanced, it has to be calculated per phase.
Reactive Power, kVAR, and When Correction Becomes a Requirement
DNOs can charge for low power factors at commercial sites with maximum demand tariffs if they fall below 0.95. In residential solar installations, the most traditional method of correction is to use smart inverter options.
How Power Factor Affects Solar and Battery System Sizing
Datasheets for inverters include the kW and kVA ratings. One of the most common sizing mistakes in UK residential solar projects is providing only the kW figure. As far as kVA demand is concerned, it is always greater than kW demand at load sites with reactive loads such as older refrigerators, motors, or air conditioning.
The capacity of a battery is measured in kWh, but the battery inverter should still be capable of handling the total apparent power (kVA) of reactive loads during backup. A 4.5 kVA load cannot be powered by a 5kWh battery and a 3.6 kW inverter, even when the battery is fully charged. Before specifying, perform site measurements. Don't perform site measurements after specifying battery inverter ratings.
Why Measuring Power Factor Requires More Than a Basic Meter Display
An in-home display with a smart meter displays kW and kWh. It has no apparent power, reactive power, or power factor, and it is not a commissioning tool. Individual appliance draw-only devices (smart plugs) should not be used for system-level assessment.
A whole-home energy monitoring solution with a smart energy meter delivers real-time data for each circuit throughout the home, including solar generation, grid import/export, and battery state. This allows for an accurate assessment of power factor on-site, post-installation performance verification, and the documentation needed to comply with MCS standards and hand over to clients.

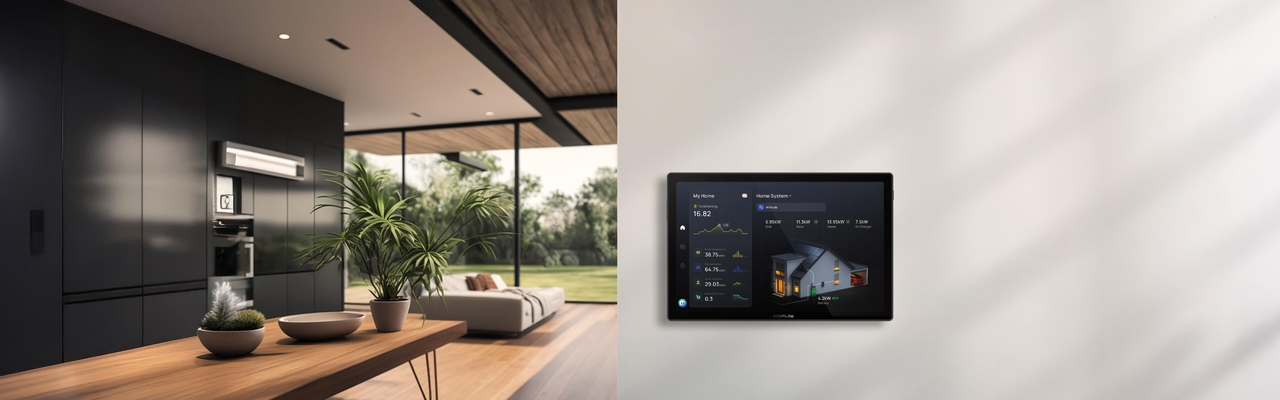

From Measurement to Management: Upgrading to a Smart Energy Monitoring System
When energy flow can be precisely measured through a property, energy flow data can be used to help schedule tariffs, solar storage, and load management.
Designed for the UK, the EcoFlow PowerInsight 2 Monitor is a whole-home energy monitor that supports circuit-level generation and consumption tracking, enables EcoFlow HEMS integration for tariff scheduling, and can be connected directly to EcoFlow battery storage. Time-of-use scheduling is a load management technique that moves away from consumption in peak rate hours with accurately measured load profiles, with the data base MCS expects at the handover level provided at that circuit.
Single-Phase Battery Storage: Matching Capacity to Measured Load Profiles
Smart monitoring gives you the data. A well-defined battery enables you to act on it. This will typically be a single-phase solution, the size of which has been determined from the load profile identified by the monitor, for most UK residential applications.
The EcoFlow PowerOcean Single-Phase Battery is a scalable single-phase, UK residential solar battery storage product. It has a hybrid inverter that automatically controls power factor at the grid connection point, a capacity that can be expanded from 5 kWh, and it can seamlessly connect to the EcoFlow smart energy monitoring platform.
Compliance, Documentation, and Handover for UK Installers
Documents showing system design calculations are required for MCS certification. The apparent power and power factor should be noted, as they affect the inverter or cable size. A smart monitor logging generation and consumption provides a verifiable post-installation performance record.
Part P relates to electrical work on dwellings that is liable to notification. All DNOs need to be notified prior to grid connection and may require power factor data on larger or three-phase installations. The system design record, commissioning performance data, monitoring app setup and a note on how the power factor calculation was used to specify the inverter needs to be provided to the client.
Power Factor Correction Strategies Worth Knowing
Low-cost passive correction (capacitor banks) is not likely to be viable for a UK residential site with varying loads. Today's hybrid inverters, such as the EcoFlow PowerOcean range, are designed to adjust the displacement power factor by configuring it in their parameters and actively pushing or pulling reactive power at the point of connection to the grid. On-site, for clients with a reactive load profile that drops power factor below 0.95, this is the most practical power factor correction formula: adjust the inverter setting, check it with your monitoring device and record the outcome at handover.
Conclusion
The power factor formula is located under every true inverter choice, along with correct sizing of the cable and solar system, which produces the bill savings the power factor was intended to create. Applying the power factor calculation formula using measured apparent power, not real power, is what makes an installation well-specified and not a callback. Combined with a professional smart monitor and a properly sized single-phase battery, all installations get the data foundation that they need to perform and comply from day one.
FAQs
What is the power factor formula?
The formula for power factor is: PF = P / S, where P is real power in kilowatts, and S is apparent power in kilovolt-amperes. It can be rearranged to P = S x PF or S = P / PF depending on which variable is required.
What is a good power factor value for a UK residential installation?
A power factor of 0.95 or higher is good. The vast majority of residential sites in the UK have values that are between 0.85 and 0.95. Anything below 0.85 is a good sign of a reactive load and should be investigated before finalizing the inverter size.
How does power factor affect inverter and battery sizing for solar systems?
Apparent power (kVA) is the inverter's rating; kW is not. For a site with a power factor of 0.85, the inverter size in kW would only indicate that it draws approximately 18% higher apparent current. This is the same for the battery inverter in backup mode.
What is the difference between a smart meter display and a smart energy monitoring system?
kW and kWh are indicated on a smart meter's in-home display. A smart energy monitoring system offers circuit-level information such as solar generation, grid import and export, battery state, and more, offering a solution for professional commissioning and MCS handover documentation.
Can a home energy monitor measure power factor directly?
There are some professional whole-home monitors capable of showing apparent power, reactive power and real power; thus, the power factor can be calculated on-site. Consumer products known as smart plugs and in-home displays cannot. Please ensure that the monitor you have selected will provide both kVA and kVAR data before ordering it for power factor measurement.
