How to Convert kVA to Amps for Home Solar and Battery Systems
Planning a solar or battery system? You’re probably going to need to figure out how many amps your inverter or gear will pull. That’s when converting kVA to amps comes in handy. This guide runs through the formulas, gives you some worked examples, and shows you how to apply it all in an Australian home.
Quick Answer: How Do You Convert kVA to Amps?
To convert kVA (kilovolt-amperes) to amps (A), multiply the kVA value by 1,000 to convert it to volt-amperes (VA), then divide by the circuit voltage.
Single-phase formula
Amps (A) = (kVA × 1,000) ÷ Voltage (V)
Three-phase formula
Amps (A) = (kVA × 1,000) ÷ (√3 × Line Voltage (V))
For a standard Australian 230V single-phase supply, a 5 kVA inverter can deliver approximately 21.7 A at full output. For a 400V three-phase supply, a 10 kVA inverter can deliver approximately 14.4 A per phase.
Key Takeaways
VA is an apparent power. Amps is the actual current flowing through your wires and breakers.
The conversion formula depends on voltage, whether you’re on single-phase or three-phase, and the power factor.
Get it right, and you’ll know if your circuit can handle the load. Incorrect calculations may lead to poor system sizing or nuisance breaker trips.
The numbers also help when sizing inverters and batteries for peak demand.
And if you’ve got real-time monitoring, you can compare the theoretical numbers with what you’re actually using. That’s when the specs start making sense.
What You Need to Know Before Converting kVA to Amps?
Before you start crunching numbers, it helps to know why your gear uses different units and how they relate to your home’s power supply.
Understand the Difference Between kVA, kW, and Amps
| Term | Meaning | Where You'll See It |
|---|---|---|
| kVA | Total power an electrical system can deliver | Inverter and generator ratings |
| kW | Power used to run appliances and equipment | Solar output and household appliances |
| Amps (A) | Current flowing through wiring and electrical circuits | Breakers, cables and switchboards |
A solar inverter is one of the key devices where kVA ratings are commonly used, as its capacity determines how much current the system can supply.
Why kVA to Amps Conversion Matters?
Australian homes rate their physical gear in amps. That includes supply cables, sub-boards, safety switches, and breakers. Many Australian homes may have main switches rated around 63A for single-phase connections, while three-phase systems often use lower current ratings per phase depending on the installation. So if you know the current requirements of your inverter or battery system, you can check whether your switchboard can handle the expected load.
Electrical Components Measured in Amps
The main things in your switchboard and wiring are all rated by current, not power:
Circuit breakers & RCDs: Usually 10A, 16A, 20A, 32A, or 63A.
Supply cables: The copper size tells you how much current it can handle before it gets too hot. Common ones are 6mm² or 10mm².
Main fuses: Your network provider, like Endeavour Energy or Energex, sets limits on the maximum current your connection can support.
The Role of Voltage and Power Factor
In Australia, the standard nominal single-phase grid voltage is 230V (commonly operating up to 240V in practice), while three-phase power operates at 400V / 415V.
Power Factor (PF) represents the efficiency ratio between real power (kW) and apparent power (kVA), ranging from 0 to 1. Modern solar inverters generally operate at or near a power factor of 1.0 (unity power factor), meaning 1 kVA is approximately equal to 1 kW under ideal conditions.
How Can You Convert kVA to Amps?
Converting kVA to current is straightforward once you apply the correct mathematical formula for your specific phase layout.
Single-Phase kVA to Amps Calculation
For standard Australian homes with single-phase supply (230V or 240V), use the following formula:
Amps (A) = (kVA × 1,000) ÷ Voltage (V)
If you are converting from real power (kW) with a known power factor, the formula incorporates PF:
Amps (A) = (kW × 1,000) ÷ (Voltage (V) × Power Factor)
Three-Phase Conversion Formula
Larger homes and newer properties often have three-phase power, which distributes electrical loads across three active phases using a 400V line-to-line supply. The conversion formula includes the square root of 3 (√3 ≈ 1.732):
Amps (A) = (kVA × 1,000) ÷ (√3 × Line Voltage (V))
Using the standard Australian 400V three-phase supply:
Amps (A) = (kVA × 1,000) ÷ (1.732 × 400)
Amps (A) = (kVA × 1,000) ÷ 692.8
Step-by-Step kVA to Amps Calculation Examples
Example 1: Single-Phase 5 kVA Solar Inverter Output (at 230V)
Convert kVA to VA: 5 kVA×1,000=5,000 VA
Divide by standard Australian nominal voltage (230V): 5,000÷230=21.74 Amps
Result: A 5 kVA inverter feeds approximately 21.74 A into your main switchboard.
Example 2: Three-Phase 10 kVA Hybrid Inverter (at 400V)
Convert kVA to VA: 10 kVA×1,000=10,000 VA
Calculate divisor (1.732×400): 692.8
Divide VA by divisor: 10,000÷692.8=14.43 Amps per phase
Result: A 10 kVA three-phase system supplies roughly 14.43 A per line.
Quick Reference Conversion Table
| System Capacity (kVA) | Single-Phase Current (230V) | Single-Phase Current (240V) | Three-Phase Current (400V Supply) |
|---|---|---|---|
| 3.0 kVA | 13.04 A | 12.50 A | 4.33 A |
| 5.0 kVA | 21.74 A | 20.83 A | 7.22 A |
| 8.0 kVA | 34.78 A | 33.33 A | 11.55 A |
| 10.0 kVA | 43.48 A | 41.67 A | 14.43 A |
| 15.0 kVA | 65.22 A | 62.50 A | 21.65 A |
Note: These values are theoretical calculations based on the stated voltage and a power factor of 1.0. Actual current may vary depending on power factor, inverter efficiency, operating conditions, and system design.
How Can You Apply kVA to Amps Results When Planning a Home Solar System?
Calculating raw current numbers is only the first step. Applying these results to actual household energy habits ensures high system performance and long-term safety.
Checking Circuit Capacity Against Calculated Current
When you get a solar or battery inverter put in, the sparkie needs to check the continuous current won’t trip your main breaker. Say your sub-panel’s on a 32A breaker and the inverter pushes 35A. That breaker’s gonna trip, which may cause repeated breaker trips. So you’ve got to match the numbers to your actual cable and breaker ratings. That way it’s safe and the network operator’s happy. Choosing a suitable EcoFlow Solar Battery solution can help homeowners plan storage capacity around their household energy needs and future usage.
Managing Peak Household Electrical Loads
Australian winters are when things really kick off. Running a 3.5 kW ducted reverse-cycle air con for heating, a 1.5 kW pool pump, and a 2 kW induction cooktop all at once can result in around 30 amps under continuous operation, depending on operating conditions. If you know your peak draw, you can size your inverter and battery to handle it, instead of forking out for expensive peak grid power. A connected Home Energy Ecosystem can help homeowners better understand how solar generation, battery storage, and household loads work together during high-demand periods.
Monitoring Real-Time Current Beyond Initial Calculations
After completing kVA to amps calculations, real-world household power consumption can still affect solar and battery performance. Many Australian homes increase air conditioning usage during summer while running pool pumps and electric hot water systems simultaneously. If you have already installed solar panels and battery storage, actual energy demand during high-load periods may vary from initial calculations. Relying solely on theoretical capacity doesn’t give you a complete picture of daily household energy flows.

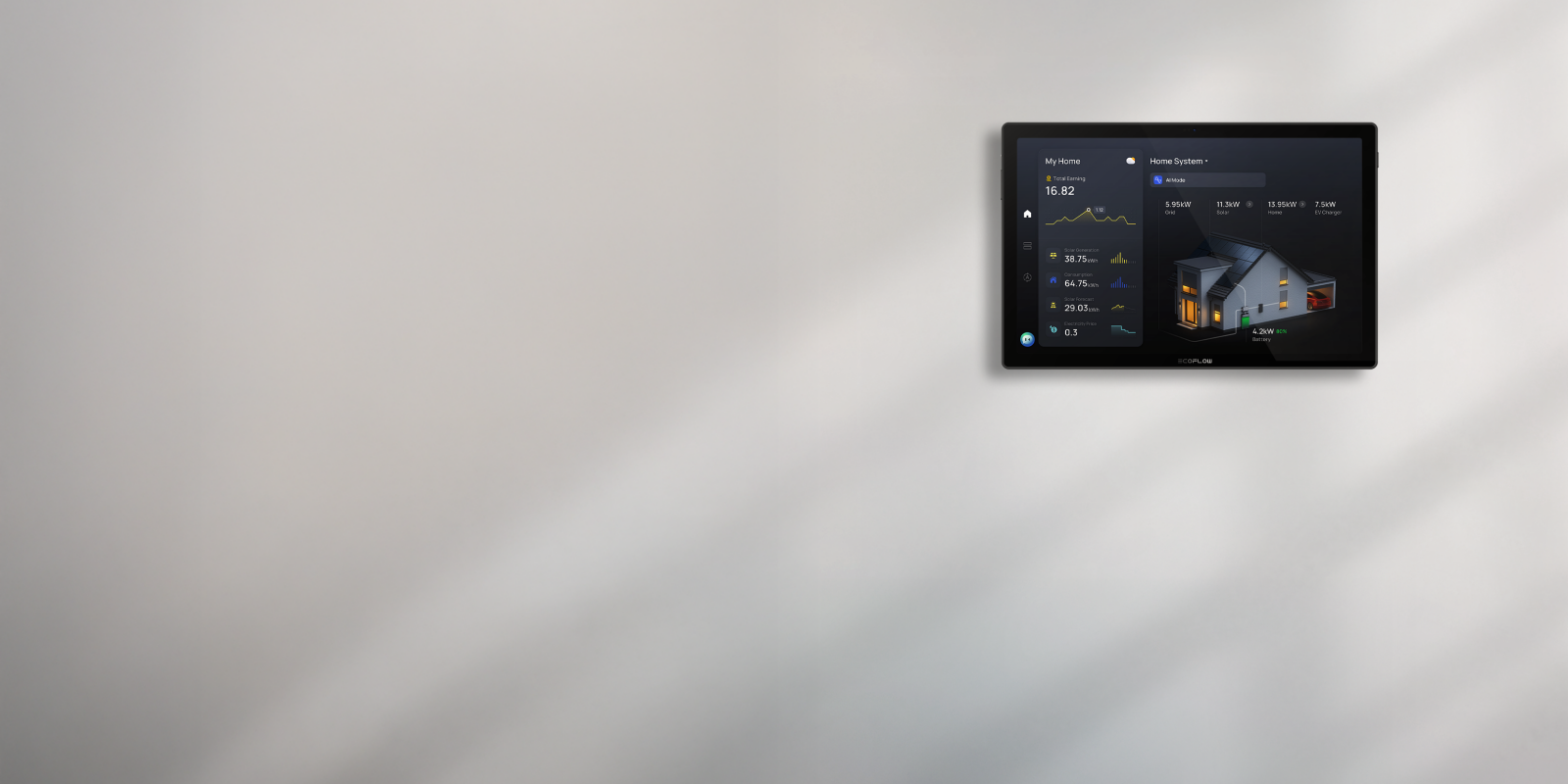

The EcoFlow PowerInsight 2 fits seamlessly into these real-world energy scenarios. By displaying real-time power flows across solar generation, battery storage, and active home loads, it helps you clearly track dynamic power changes as different appliances turn on and off throughout the day.
Planning for Future Solar and Battery Expansion
Working out kVA to amps isn’t just about your current solar setup. It shapes what you can do later. A lot of Aussie households start with rooftop solar to cover daytime use, then add a battery down the track as EVs or energy demands grow. If you don’t leave room for that from the start, expanding later can hit electrical bottlenecks.

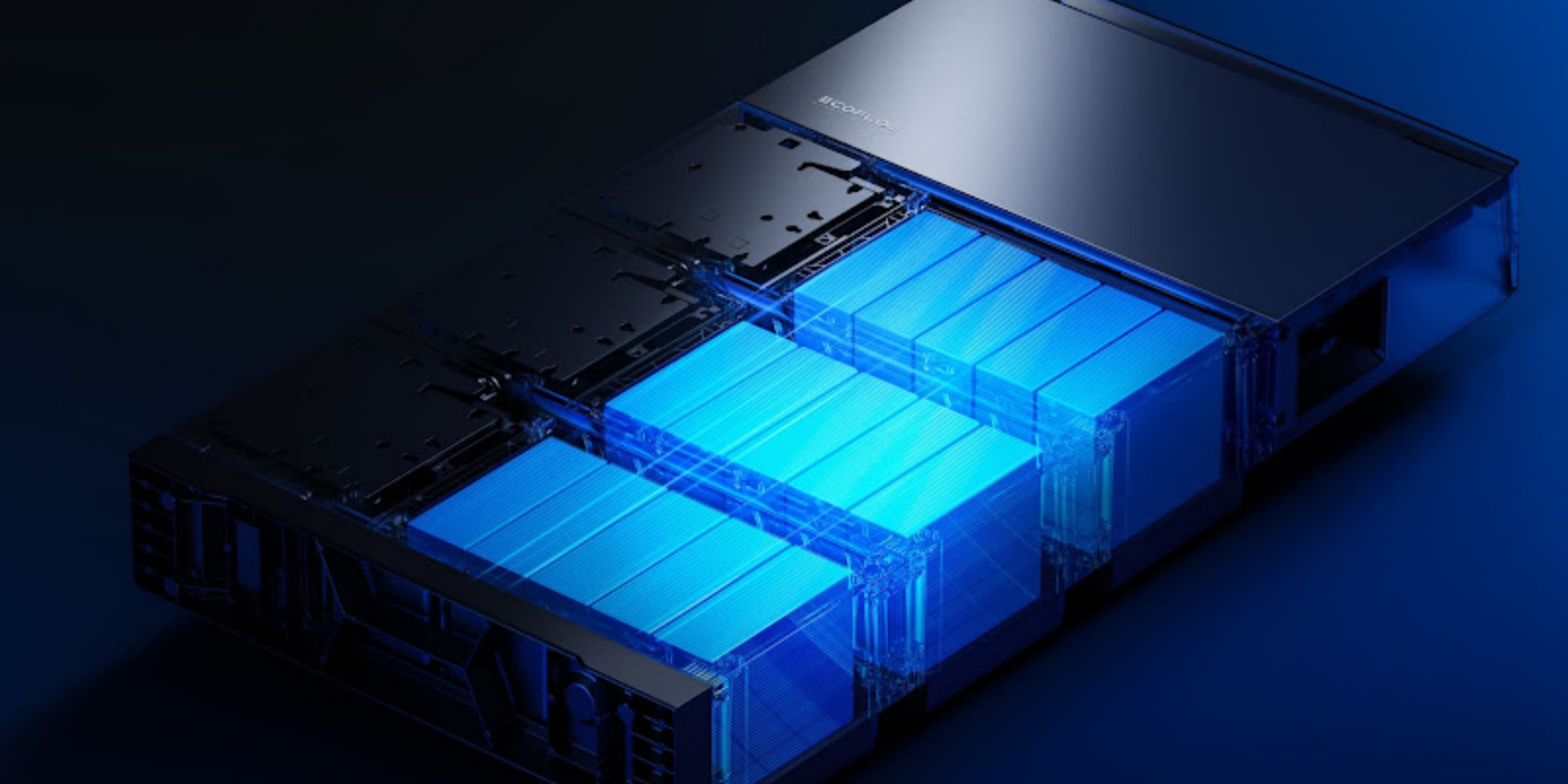

The EcoFlow OCEAN 2 Plus Single Phase supports expandable storage capacity, with up to 60kWh storage supported per inverter, allowing homeowners to scale their solar and storage system as energy needs increase.
What Mistakes Should You Avoid When Converting kVA to Amps?
Avoid these common calculation oversights when planning your electrical setup:
Use the Wrong Voltage in the Formula
A common mistake is plugging in overseas voltage figures, like the US 120V standard, instead of the Australian residential 230V or 240V. Using 120V will give you double the amperage, and that can lead to some seriously wrong equipment choices. Accurate voltage calculations are especially important when designing an off grid solar system, where inverter and battery sizing can significantly affect system reliability.
Ignore Power Factor When It Applies
Assuming a power factor of 1.0 for inductive motor loads like older air conditioners or power tools can trip you up. Those loads often sit around 0.8, which means they draw more current for the same effective power.
Confuse Single-Phase and Three-Phase Systems
Using single-phase math on a three-phase connection will give you wildly inflated per-phase amperage. Always check whether your place runs on a single active line or three active lines before you do the sums.
Use Calculated Current Without Checking Equipment Ratings
Calculated figures are theoretical maximums. High-amp equipment should be connected only after verifying that physical wire gauges, safety switches, and terminal lugs match or exceed the calculated amp values.
Schedule Your Free Consultation Today!
What kind of product or solution are you interested in?
Conclusion
Understanding kVA to amp conversions helps you make more informed decisions when designing, running, or upgrading a solar and battery system. Match your inverter rating to your switchboard’s actual capacity, factor in summer peak loads, and pair smart monitoring like the EcoFlow PowerInsight 2 with flexible storage like the EcoFlow OCEAN 2 Plus Single Phase. That way you end up with a home power setup that’s safe, resilient, and actually cost-effective.
FAQ
What Is 5.5 kVA in Amps at 240V?
At 240V single-phase with a power factor of 1.0, 5.5 kVA comes out to about 22.92 amps. The calculation is Amps = (5.5 × 1,000) ÷ 240, which is below the rating of a typical 32A residential circuit.
Can You Convert kVA to Amps Without Knowing the Voltage?
No, you can’t convert kVA to amps without the voltage. Voltage is required because current depends on the electrical supply voltage. Amps depend on the circuit voltage, plain and simple.
Can I Use a kVA to Amps Calculator for Both Single-Phase and Three-Phase Systems?
Yes, you can use a kVA to amps calculator for both single-phase and three-phase systems, just make sure you’ve selected the right phase and punched in the correct voltage. Three-phase calculations use a 1.732 divisor, while single-phase is a straight division by line voltage.
Is a Higher kVA Rating Always Better?
No, a higher kVA rating is not always better because oversizing your system beyond household needs incurs unnecessary equipment costs and may exceed grid connection limits set by local network providers. Sizing your inverter and battery to match your actual peak current requirement offers optimal balance and efficiency.
What Happens If My System Draws More Current Than Expected?
If your system pulls more current than your circuit breaker or cables can take, the breaker will trip and cut the power. This protection helps prevent overheating and potential equipment damage. Continuous overloading may increase the risk of cable overheating or equipment damage. So it pays to get your kVA to amp sums right and keep an eye on what you’re drawing.
