RCD Switch Explained: Electrical Safety Protection for UK Homes with Solar and Battery Storage
An RCD is a safety device that disconnects a circuit when it detects an imbalance caused by current leakage to earth. It protects you from electric shocks and helps reduce fire risk. When you’re fitting solar panels or battery storage in a UK home, getting the right type of RCD – like Type A or Type B – is crucial. Some modern inverters can produce smooth DC residual currents that may affect how certain RCD types operate if the protection is not correctly matched.
This guide covers how RCDs protect UK homes, what the 18th Edition Wiring Regulations (BS 7671) say about them, and how to make sure your safety kit works properly alongside modern solar tech.
Key Takeaways
Earth Fault Protection: RCDs protect UK homes by keeping an eye on the current balance, spotting any leakage, and disconnecting the circuit within milliseconds under fault conditions.
Multi‑Source Complexity: Solar and battery setups introduce two‑way power flows and high‑frequency DC leakage, so you need to plan your safety measures carefully.
Inverter & RCD Matching: The right RCD depends on your inverter – whether it’s transformerless or isolated – along with the residual current characteristics and what the manufacturer specifies under BS 7671.
Consumer Unit Readiness: Before adding battery storage, you need to check whether your existing consumer unit and main fuse can handle it, otherwise you risk nuisance tripping or protection failures.
Long‑Term System Coordination: Safe home energy storage relies on regular testing of protective devices, a well‑thought‑out system layout, and integrated real‑time monitoring to help maintain safe and reliable operation.
How Does RCD Protection Work in UK Homes With Solar and Battery Storage?
Understanding electrical protection starts with the consumer unit (fuse box), where electricity is distributed to different circuits throughout your home.
Protecting Homes From Electrical Leakage and Shock Risks
An RCD keeps an eye on the current going through the live and neutral wires. Normally, what goes out comes back along the same route. But if a fault sends current leaking to earth – from damaged wiring, a faulty outdoor socket, or someone coming into contact with a live conductor – the RCD spots the imbalance and cuts the power in milliseconds to stop a shock happening.
Managing Electrical Safety When Adding Solar Panels and Battery Storage
A hybrid inverter manages power conversion between solar panels, batteries, and household loads, which makes correct residual current protection an important part of system design. With solar panels and battery storage, electricity no longer flows in only one direction. Hybrid inverters convert DC power from solar panels or batteries into AC power for your home, while excess generation or battery discharge can send power back through the consumer unit. This means the protection system must also handle potential DC leakage and more complex current patterns.
Understanding RCD Requirements Across Different Solar Battery Scenarios
Solar and battery systems can have different protection requirements depending on the inverter type, system design, and whether backup power is included. Installers need to consider factors such as inverter isolation and residual current characteristics to select the correct RCD protection. For homeowners planning a complete renewable energy upgrade, selecting a suitable EcoFlow Solar Battery solution can also help ensure the storage system is designed around reliable energy management and long-term household needs.
What Types of RCD Switches Are Used in UK Solar and Battery Systems?
Choosing the right RCD matters because not every device can detect the types of fault currents produced by modern solar inverters. Let’s break down the primary RCD types recognized under UK wiring regulations.
Understanding Different RCD Types and Their Applications
Historically, standard UK homes relied on Type AC RCDs. However, modern electronics, solar inverters, and battery chargers generate complex waveforms that require more sophisticated sensing capabilities.
| RCD Type | Detects | Typical Use | Solar & Battery Suitability |
|---|---|---|---|
| Type AC | AC residual currents only | Older domestic circuits | Generally not suitable for many modern solar PV installations because smooth DC residual currents may affect RCD operation. |
| Type A | AC residual currents and pulsating DC residual currents | Modern homes, appliances, some EV chargers | Suitable when the inverter includes built-in DC residual current protection, such as RDC-DD, that limits smooth DC residual current below 6 mA. |
| Type F | Type A + high-frequency currents | Variable-speed appliances, heat pumps | Limited use for solar PV protection |
| Type B | AC, pulsating DC and smooth DC residual currents | Renewable systems, complex installations | May be required for some transformerless inverter installations where DC residual current protection is not provided, depending on manufacturer requirements and system design. |
Which RCD Does Your Inverter Need?
Many modern residential solar inverters use transformerless designs, which means they may produce smooth DC leakage under certain fault conditions. If smooth DC residual current exceeds the level permitted for the protection arrangement, it may affect the correct operation of the RCD. This is known as RCD blinding, where DC residual current can reduce the device’s ability to detect certain AC fault currents.
If the inverter has built-in DC leakage protection (such as RDC-DD or equivalent protection below 6 mA), a Type A RCD is usually suitable. Otherwise, a Type B RCD may be required according to the manufacturer’s instructions and BS 7671 requirements.
Avoiding Incorrect RCD Selection During System Upgrades
A frequent pitfall during DIY planning or rushed retrofits is assuming an existing split-load consumer unit can simply take a new solar feed. If an unqualified installer connects a solar inverter to a circuit protected by an old Type AC RCD, any DC leakage from the inverter could blind that RCD. This leaves not just the solar array, but potentially leaves downstream circuits without the intended level of residual current protection. Professional MCS-certified installers typically assess the existing consumer unit before connecting a solar inverter.
How Can Homeowners Prepare Their Electrical Systems Before Installing Battery Storage?
Before adding battery storage, it’s worth checking whether your existing consumer unit and wiring are ready for the extra equipment.
Checking Consumer Units and Existing Electrical Protection
Before fitting a solar battery, get a sparky to check your fuse box and consumer unit, earthing, and existing protection. If you’ve got an old fuse box or Type AC RCDs, they’ll probably need upgrading to something like RCBOs and SPDs. It’s also worth putting the inverter and battery on their own circuit that stops nuisance tripping and keeps things safe. Older properties may also need a consumer unit replacement if existing protection devices cannot support modern solar and battery installations.
Designing Battery Storage Systems Around Electrical Safety Requirements
If you plan to add solar and battery storage to an existing home, RCDs are only one part of comprehensive electrical safety planning. After introducing new inverters, batteries, and additional energy equipment, households must ensure the distribution system matches updated electrical demands, taking into account equipment capacity, protective device coordination, and room for future expansion.

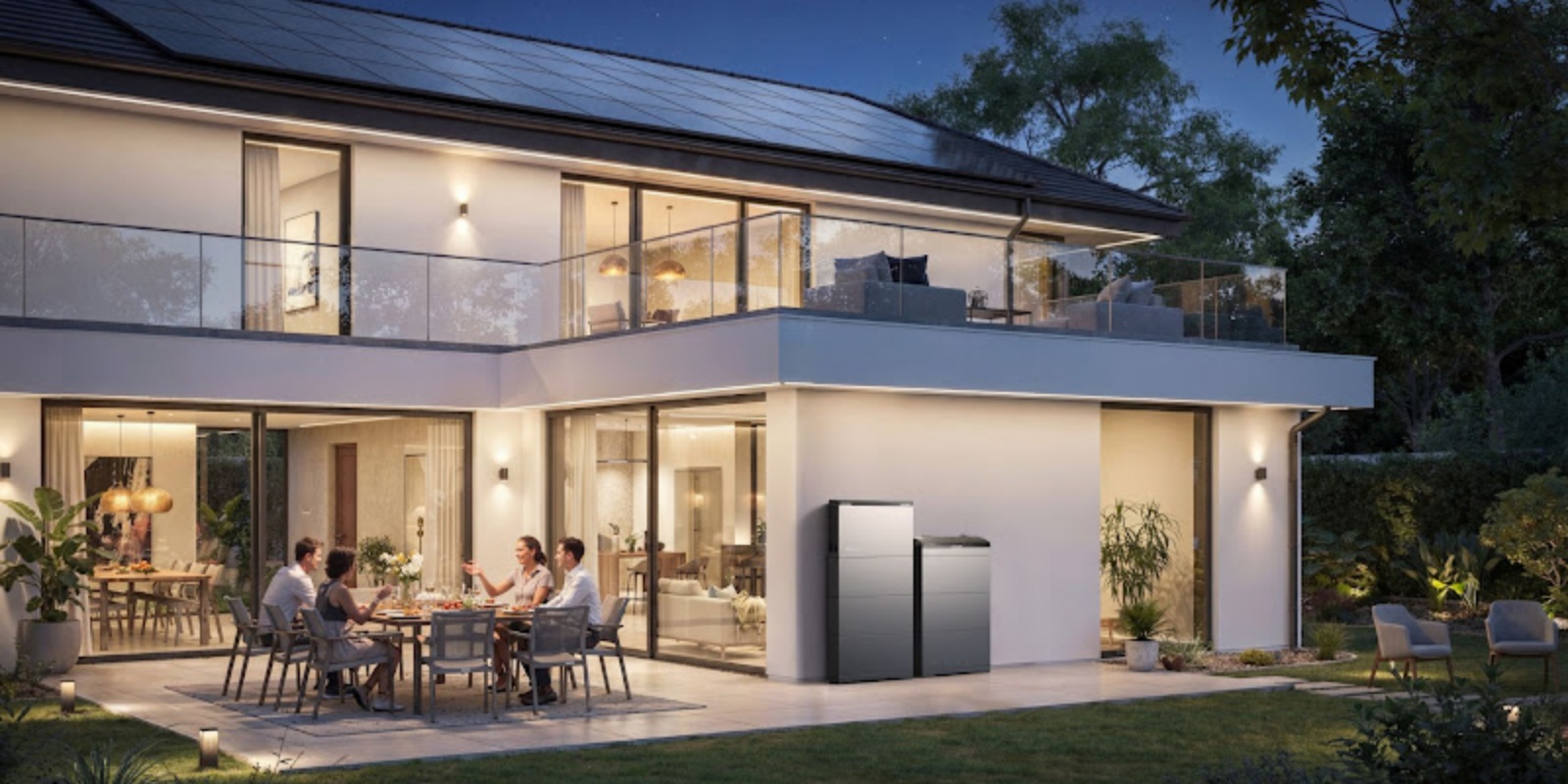

For instance, when roof space allows for additional solar panels down the road, or when family energy needs grow, the adaptability of the energy storage system itself directly impacts your long-term experience. Flexible options like the EcoFlow OCEAN 2 Plus Single Phase help homes adapt to different roof orientations and sunlight conditions while supporting future system expansion and reliable backup power management.
How Can Homeowners Keep Solar Battery Systems Safe Over Time?
Installing the system is only the first step. Regular testing and inspections help keep it working safely.
Monitoring Energy Performance After Solar Battery Installation
After completing a solar and battery storage installation, maintaining clear visibility over how your system operates is vital. As households introduce electric vehicles, heat pumps, or other high-power appliances, energy demands shift continuously. Relying solely on monthly electricity bills makes it difficult to understand the real-time interaction between solar generation, battery storage, and household consumption.

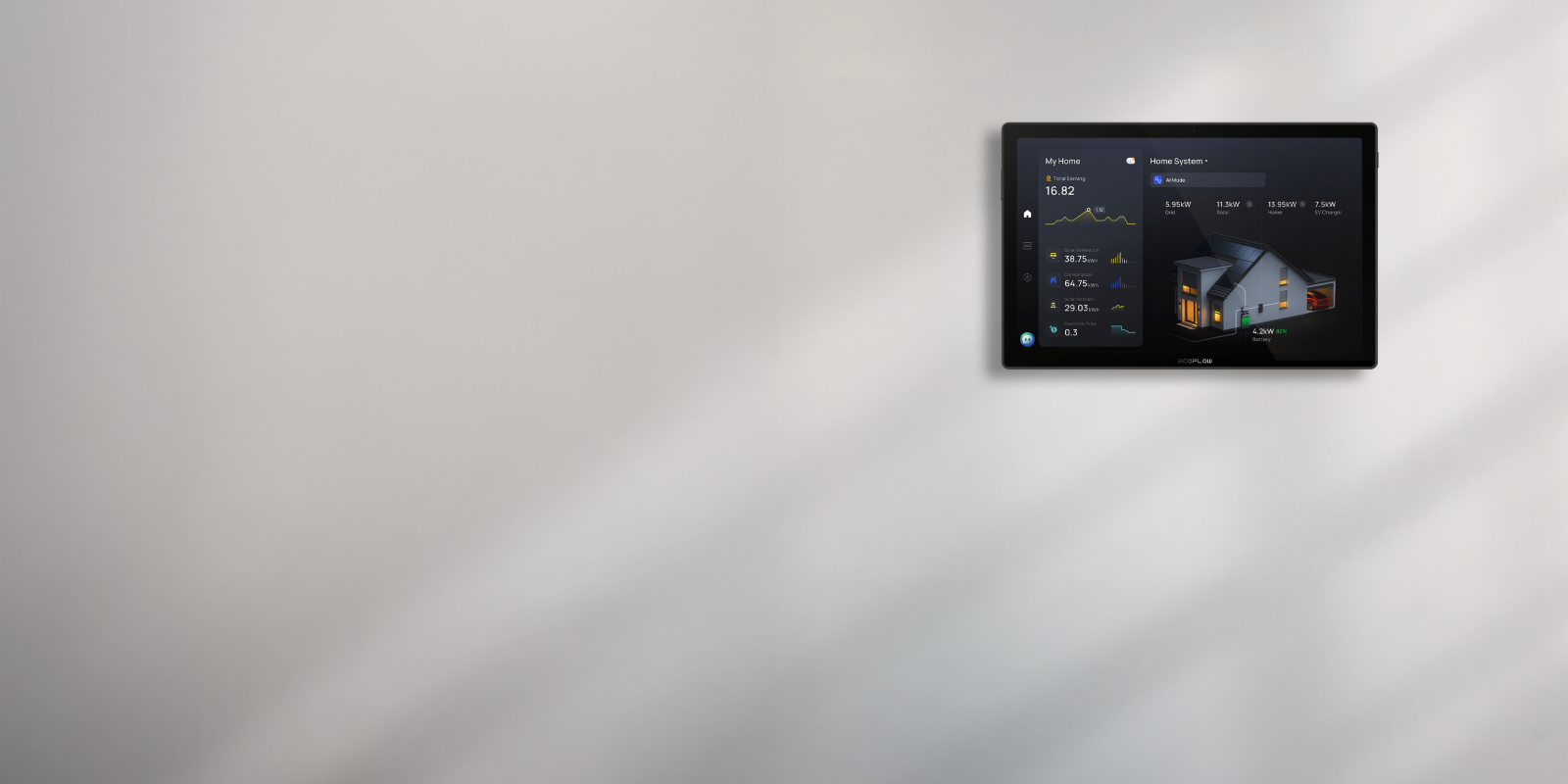

Utilizing dedicated smart controllers, such as the EcoFlow PowerInsight 2, helps users monitor energy flows, understand household consumption patterns, and make smarter decisions when managing their solar and storage setup over long-term operation.
Testing RCD Performance During Regular Maintenance
Every mechanical RCD device features a small “Test” button on its front face. Pressing this button manually creates a small, controlled imbalance to trip the mechanism mechanically. UK electrical safety guidance commonly recommends testing RCDs regularly, often every six months or as advised by current regulations, to confirm they operate correctly and ensure the internal mechanism has not seized. Additionally, periodic professional testing using a specialized calibrated RCD tester measures exact tripping times in milliseconds to confirm the unit remains within safety parameters.
Reviewing Electrical Protection After System Changes
Whenever you make big changes to your home’s electrics – like fitting a high-power EV charger, adding a heat pump, or expanding your solar setup – you should get your protection gear re-assessed. For solar installations, working with an installer who understands certification requirements, including a valid MCS certificate, can help ensure the system meets recognised industry standards. A new kit that draws a lot of power or generates extra current can change your loop impedance and leakage levels, which might mean tweaking your breaker ratings or adjusting how your RCDs are set up.
Maintaining Electrical Safety During Long-Term Solar Battery Use
Keeping your system safe over the long haul means making sure you can always get to your inverter, battery unit, and consumer unit without any clutter in the way. Make sure your battery storage area is well ventilated and free of anything flammable. In addition to external electrical protection such as RCDs, the internal safety features of the battery itself also matter. EcoFlow BMS helps monitor battery conditions and manage battery protection processes, supporting safer long-term operation of home energy storage systems. Many electricians recommend periodic inspection, such as an EICR every 5 to 10 years depending on the property’s age and electrical condition – or sooner if they recommend it – to check for signs of overheating, test the insulation, and make sure all your earthing and bonding are still sound.
Schedule Your Free Consultation Today!
What kind of product or solution are you interested in?
Conclusion
Picking the right RCD is about making sure your home’s protection still does its job once you’ve added solar or battery storage. Whether you’re upgrading an existing setup or starting from scratch, checking that your inverter, consumer unit, and protective gear all play nicely together will keep things safe for the long run.
FAQ
Do solar battery systems need RCD protection in the UK?
Yes, solar battery systems in the UK commonly require appropriate RCD protection to meet BS 7671 requirements and safeguard against electrical earth faults. The exact requirement depends on factors such as system design, cable routing, earthing arrangements, and inverter isolation specifications.
What type of RCD is needed for a solar inverter?
A Type A or Type B RCD may be required for a solar inverter, depending on the inverter design, residual current characteristics, and manufacturer requirements. IIf the inverter does not provide suitable DC residual current protection, a Type B RCD may be required to prevent issues such as protective device blinding, depending on the installation design and manufacturer instructions.
Why does my RCD keep tripping after installing solar panels?
An RCD can trip after solar installation due to accumulated capacitive earth leakage from inverter filter circuits or an incorrectly selected RCD type. Wiring mistakes, neutral-earth faults, or shared neutral circuits on legacy consumer units can also trigger persistent tripping.
Can I install a solar battery system without upgrading my consumer unit?
Yes, you can install a system without replacing your main consumer unit if there is adequate spare capacity and the existing unit meets current safety standards. However, many older UK fuse boxes require a consumer unit upgrade or a dedicated mini-consumer unit to accommodate modern RCD and surge protection requirements.
Does an RCD protect my home during a power cut?
No, a standard RCD only operates when an active electrical circuit is energized and experiences a current leak to earth. During a power cut, standard circuits are dead; if your battery provides islanding backup power, special automatic earthing relays must be engaged for the RCD to function off-grid.
Is an RCD the same as a circuit breaker?
No, an RCD protects against earth leakage and shock risks, whereas a standard circuit breaker (MCB) protects against overloads and short circuits. Many modern UK installations combine both functions into a single device called an RCBO.
